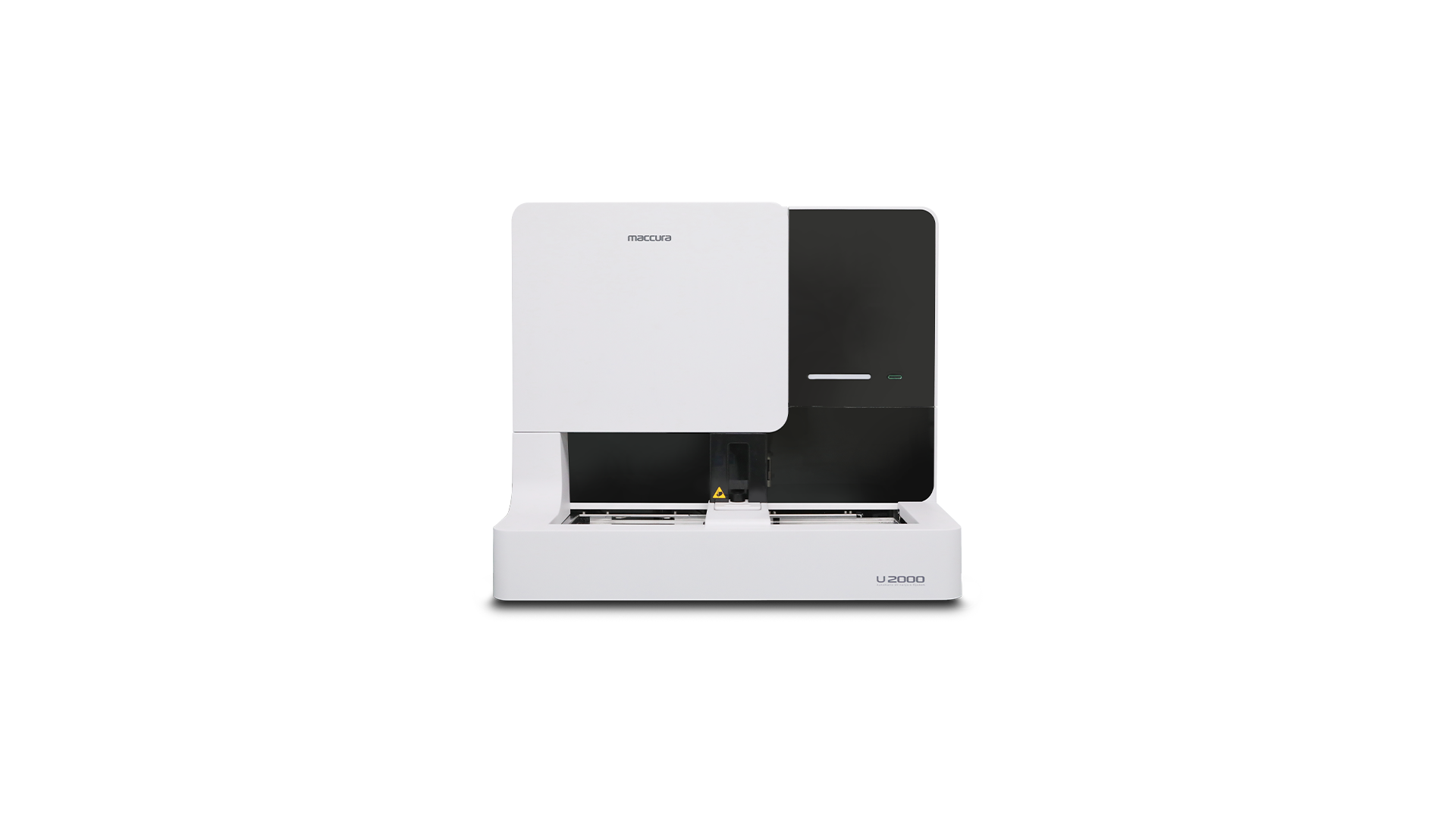

Automatic Urinalysis Analyzer System

Automatic Urinalysis Analyzer System

Flexible Efficient Intelligent Accurate

A comprehensive solution for urinalysis that integrates chemical, physical, and urinary sediment analysis.

Cost and space saving, respond to lab needs flexibly. With variety of detection modes, it can be operated separately or in combination.

Improve testing efficiency. Integrate multiple detection modules, a complete test of physical, chemical, and sediment using a single sample.

Introduce artificial neural network deep learning technology, identify urinary sediments intelligently.

Set standardized retest rules, perform multiple tests according to the rules. Regulate testing processes to reduce laboratory errors.

Functional partition
  • Throughput

    Chemistry Mode: 240T/H
    Morphology Mode: 120T/H
    All Mode: 120T/H

  • Sample Processing

    No need to centrifugation and staining, the combined detection of dry chemistry and urinary sediment can be completed directly on the instrument. Simple and efficient detection.

  • Supporting System

    The automatic urinalysis system matches instruments, reagents and calibrators to ensure the accuracy of test results.

  • Urinary Sediment Identification

    Flat flow cytometry technology combined with high-speed camera technology, the collected particle images have no overlap, no aggregation, intuitive and clear image display, and support graphic reports.
    The AI neural network deep learning technology is used to extract the multiple features of particles to realize the identification and classification of components.

Product Specification
Throughput

Chemistry Mode: 240T/H
Morphology Mode: 120T/H
All Mode: 120T/H

Detection Items

Physical: Color, Specific Gravity, Turbidity

Urinary Sediment: WBC, RBC, Squamous Epithelial Cells, Non-Squamous Epithelial Cells, Hyaline Cast, Pathologic Cast, Bacterial, Crystals, Mucus, WBC mass, Yeast Like Cell, Sperm

Dry Chemistry: Urobilinogen (URO)、Bilirubin (BIL)、Ketone (KET)、Blood (BLD)、Protein (PRO)、Nitrite (NIT)、Leucocyte (LEU)、Glucose (GLU)、pH(pH)、Specific Gravity (SG)*、Vitamin C (VC)、Microalbumin (MA)、Creatinine (Cr)、Calcium (Ca)

Detection Principle

Physical: Reflectivity method, refractive rate calculation, transmittance absorbance

Urinary Sediment: Planar Flow Image Technology, Artificial Intelligence Recognition Technology

Dry Chemistry: Photoelectric colorimetry

Sample Loading

Maximum 50 samples per detection, support continuous loading

Data Storage

≥ 200,000

Sample Processing

Samples can be processed directly in the instrument, without centrifugation or staining

STAT

Support

Retest Rules

Support

Sample Barcode

Automatic identification or manual input

Report Mode

Multiple reporting modes can be selected, and the same report can show the results of dry chemistry and urinary sediment

Language

Chinese / English

Data Port

RS-232 communication interface/Web port

Operation System

64-bit Windows 7/64-bit Windows 10

Instrument Size

656 mm×590 mm×670 mm(W×H×D)

Instrument Weight

67 kg
