f9000x

Automatic Hematology Analysis Workstation

Click to view
f9000x

Automatic Hematology Analysis Workstation

Laboratory Whole Blood Test

One-Step Solution

Automatic hematology analysis workstation integrates routine blood analysis, specific protein analysis, glycohemoglobin analysis and automatic slide making and staining to improve the detection efficiency and standardize the laboratory testing process.

1 2
Control System

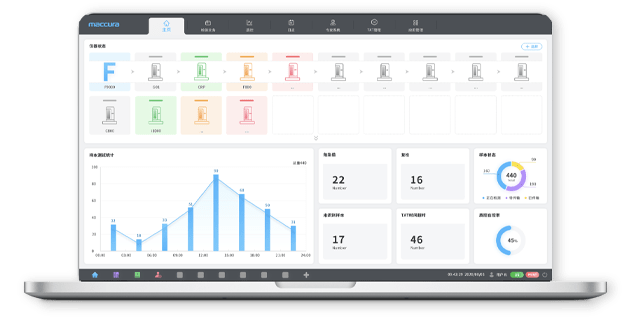

Standard touch screen computer, equipped with instrument control software, supports glove-wearing operation, one-button start the workflow, clear and simple interface, and makes interaction more convenient.

Track System

Includes loading, scanning, recycle and cache modules (optional). The loading and recycle modules can be installed on the same side or on both sides according to user requirements, and optimize the sample and personnel moving area.

F 800
F 810
F 880
The whole series include three models
100T /
Single Hematology Analyzer Speed

8 Series Automatic Hematology Analyzer

The whole series include three models: F800, F810 and F880.
Use fluorescent nucleic acid staining technique to detect white blood cells and all kinds of naive cells, and to accurately and sensitively screen the three kinds of peripheral blood immature cells.
The blood routine speed of a single hematology analyzer can reach 100 tests/hour, and the workstation can be connected with multiple instruments. The three models can be matched optionally with each other to effectively balance the contradiction between quality, efficiency and cost.
Test Result Coverage
Hypersensitive CRP
Normal CRP

Automatic Specific Protein Analyzer

The detection of linear range is 0.5-420mg/L, and the test results cover both hypersensitive and ordinary CRP (i.e. full range CRP).
Reduce high-value samples dilution re-examination, resist RF interference (RF < 2000U/L), reduce the interference of non-specific scattered light.
Combined with routine blood test, measured HCT automatically corrects CRP, making the results more accurate.

Automatic Glycohemoglobin Analyzer

Use the classical ion exchange high performance liquid chromatography method, through the NGSP and IFCC dual certification, effectively separate the stable HbA1c and other common interference components, to provide a complete analytical spectrum.

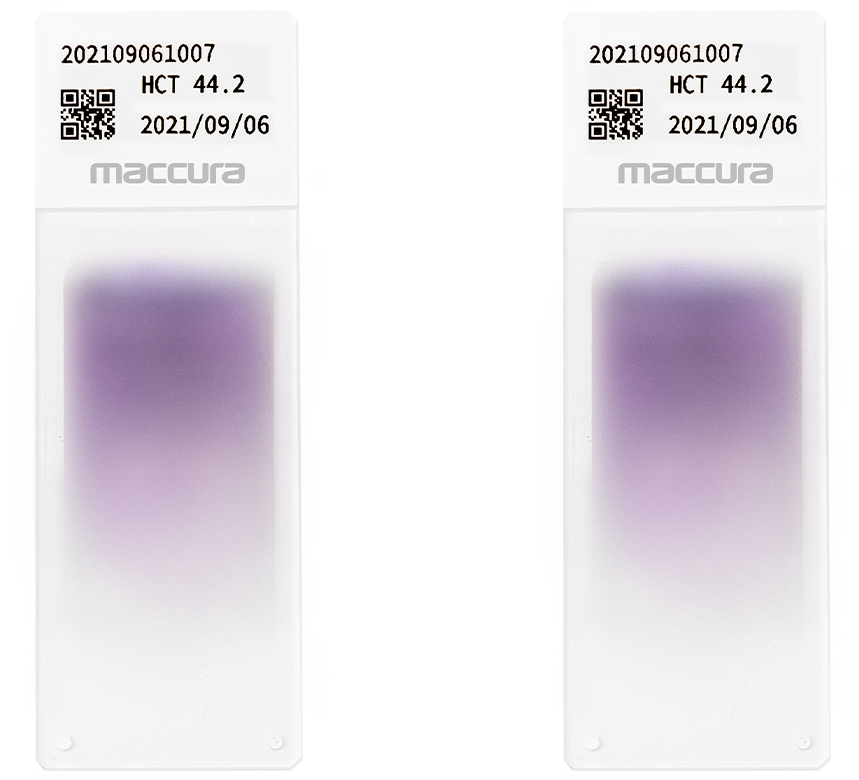

The printing area can customize one-dimensional code, two-dimensional code and a number of text information. The slides in manual sampling mode has an "M" identifier, for information management of the search, storage and tracing of the slides.

Meet ISO 15189 approval requirements.


Touch screen operation display interface with clear slide position and status.

Automatic Slide Maker & Stainer AS120

Support a variety of loading modes, such as automatic, manual closing/opening and so on. The sample volume of all modes is only 40μL. A variety of slider-making parameters can be set and automatically adjusted according to the blood viscosity and HCT.
The high speed/standard slide-making speed can be switched at any time according to the sample size. The standard mode can save dye and avoid waste.
Dyeing pool with cover and automatic switch design, to reduce volatilization of dye solution (methanol), and improve environmental safety.

Empty glass basket automatic recycling, without manual take and put automatic maintenance procedures, automatic cleaning.

Automatic slide-making according to the rules, or insert the emergency sample at any time.

No external force damage, one blade without replacement.

One tube of whole blood for multiple tests

One tube of whole blood for multiple tests.

Measured HCT accurately corrects CRP results.

Reduce blood sampling and improve patient’s medical experience.

Function Customization

Flexible choice of different models of blood analyzer.

Equipped with different special functions, provide a variety of testing parameters.

Intelligent re-inspection

Expert review system with re-inspection rules.

Realize the intelligent re-test of blood routine test and automatic slide making and staining.

Standardize the inspection process to reduce the risk of error.

Diagnostic process

Intelligent laboratory system. The state of the instrument, the sample.

Real-time display of alarm and statistical information.

  • A
    Sample Testing

    Under two-way communication mode, according to the doctor's order

    (CBC+DIFF\CRP\HbA1c and other items test).

  • B
    Re-inspection Rule

    The result of initial inspection is automatically judged by the re-inspection rules set in the expert system.

  • C
    Automatic Re-inspection

    After judging the result, the retest is carried out on the workstation by changing machine, changing channel and automatic slide-making.

  • D
    Results Report

    Multiple test results are reported synchronously and illustrated.

STEP 1
STEP 2
STEP 3
STEP 4

Break the Rules

Flexible Placement

With corner and different specifications modules, it can realize the layout of type ‘I’,’ L’ and ‘U’ (inside ‘U’ or outside ‘U’) shape of the instrument.

Efficient use of space to meet the different site conditions of the personalized layout.

‘I’ shape placement
‘U’ shape placement [outside]
‘U’ shape placement [inside]
